Ultra Low Temperature ODM Liquid Nitrogen Tunnel Quick Frozen Machine

Place of Origin : Guangdong, China

Brand Name : DJL

Certification : ISO9001,CE

Packaging Details : sea shippment package

Supply Ability : 100 Sets per year

Price : negotiable

Model Number : DJL-QFL-1636A

MOQ : 1 set

Payment Terms : T/T

Delivery Time : 45 work days

Power : 75kw

Dimension(L*W*H) : 36000*1600*1650mm

Weight : 5000kg

Cooling Capacity : 4000-5000kg/hour

Equipment structure : whole lifting type, side-opening door type

Application : marine products,out of-season fruits, high value-added food

Contact Now

ultra low temperature ODM liquid nitrogen tunnel quick frozen machine

Quick-frozen food can keep the food fresh and nutritious, so that the food can be stored for a longer time. It can solve the regional limitation of special delicious food, and make the original food easily delivered to all parts of the world. It can also solve the problem of overproduction and reduce food waste.

Specification

Model	Tunnel length (mm)	Wire belt width (mm)	Tunnel height (mm)	Power (KW)	freezing capacity (kg/h)
DJL-QFL-1206	6000	1200	1750	10	400-600
DJL-QFL-1209	9000	1200	1750	12	800-1000
DJL-QFL-1212	12000	1200	1750	18	1000-1200
DJL-QFL-1609	9000	1600	1750	15	1000-1200
DJL-QFL-1612	12000	1600	1750	28	1800-2100
DJL-QFL-1618	18000	1600	1750	32	2000-2500
DJL-QFL-1815	15000	1800	1750	28	2000-2500
DJL-QFL-1818	18000	1800	1750	32	2200-2800
DJL-QFL-1824	24000	1800	1750	46	2800-3500

Equipment material:	SUS304 stainless steel
Working temperature:	-150℃~room temperature
Temperature control precision:	±2℃
Temperature uniformity:	±5℃
Cooling rate:	≥20℃/min
Heating rate:	≥5℃/min
Distribution specification:	380V/50HZ

Ultra Low Temperature ODM Liquid Nitrogen Tunnel Quick Frozen Machine

Our Services

We can customize all kinds of equipments which is suitable for customer site's specification, the personilized product can be designed and manufactured according to customer's requirements.

The partition module can be designed flexibly as per customer's requirements, to obtain the minimum energy consumption; Meanwhile, different technologies can be operated at one machine to process different products.

We can provide the total solution of ultra-low refrigeration and quick freezing technology for customers.

The product is of one year free warranty with the lifelong maintenance.

If there are some problems when the product is in use, the engineering technician will put forward the corresponding solution timely and assist the user to ensure the normal production.

The latest research achievement and test data shall be shared with customers by the company, and the equipment upgrading service shall be provided for customers in need.

FAQ

1. How to send the equipment to my country?

By sea, using 20'GP, 40'GP or 45'GP containers, depends on size of the equipment.

2. How much liquid nitrogen will be consumed for freezing foods?

Generally 1:1, that is 1 ton nitrogen for 1 ton food The comsumption rate is 1:1 to 1:1.5, actual consumption depends on the dimension and water content.

3. What is your warranty policy?

One year warranty, life-time maintenance.Components and parts are provided for free within warranty date for replacement.

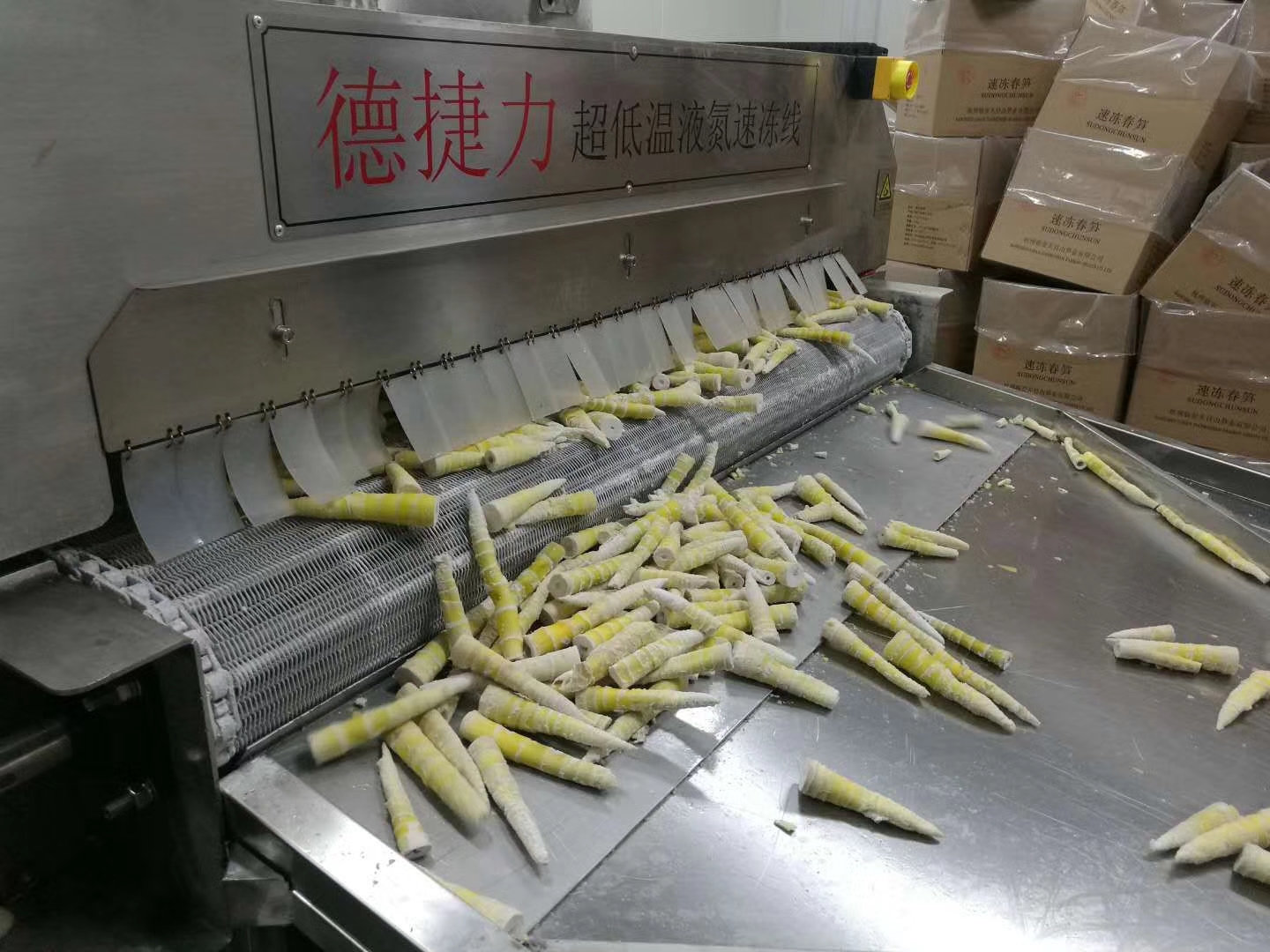

Ultra Low Temperature ODM Liquid Nitrogen Tunnel Quick Frozen Machine Images
