Industrial Freezer Quick Freezing Tunnel Fish Freezer Liquid Nitrogen Tunnel Freezer

Place of Origin : Guangdong, China

Brand Name : DJL

Packaging Details : customized

Supply Ability : 40 sets per months

Price : negotiable

Model Number : DJL-QFL-1209A

Certification : CE,ISO9001

MOQ : 1 set

Payment Terms : T/T

Delivery Time : 45 work days

Power : 12 kw

Dimension(L*W*H) : 9000*1200mm

Weight : 6000kg

Cooling Capacity : 800-1000 kgs/hour

Equipment structure : whole lifting type, side-opening door type

Application : seafood, meat, vegetables, fruits, high value-added food

Contact Now

Industrial Freezer Quick Freezing Tunnel Fish Freezer Liquid Nitrogen Tunnel Freezer

product description

Tunnel refrigerator uses liquid nitrogen as refrigerant to directly freeze food, which is suitable for all kinds of food.The equipment has a long service life and low consumables design. The replacement of vulnerable parts is simple and rapid, and the maintainability is excellent.

Specification

Model	Tunnel length (mm)	Wire belt width (mm)	Tunnel height (mm)	Power (KW)	freezing capacity (kg/h)
DJL-QFL-1206	6000	1200	1750	10	400-600
DJL-QFL-1209	9000	1200	1750	12	800-1000
DJL-QFL-1212	12000	1200	1750	18	1000-1200
DJL-QFL-1609	9000	1600	1750	15	1000-1200
DJL-QFL-1612	12000	1600	1750	28	1800-2100
DJL-QFL-1618	18000	1600	1750	32	2000-2500
DJL-QFL-1815	15000	1800	1750	28	2000-2500
DJL-QFL-1818	18000	1800	1750	32	2200-2800
DJL-QFL-1824	24000	1800	1750	46	2800-3500

Equipment material:	SUS304 stainless steel
Working temperature:	-150℃~room temperature
Temperature control precision:	±2℃
Temperature uniformity:	±5℃
Cooling rate:	≥20℃/min
Heating rate:	≥5℃/min
Distribution specification:	380V/50HZ

Industrial Freezer Quick Freezing Tunnel Fish Freezer Liquid Nitrogen Tunnel Freezer

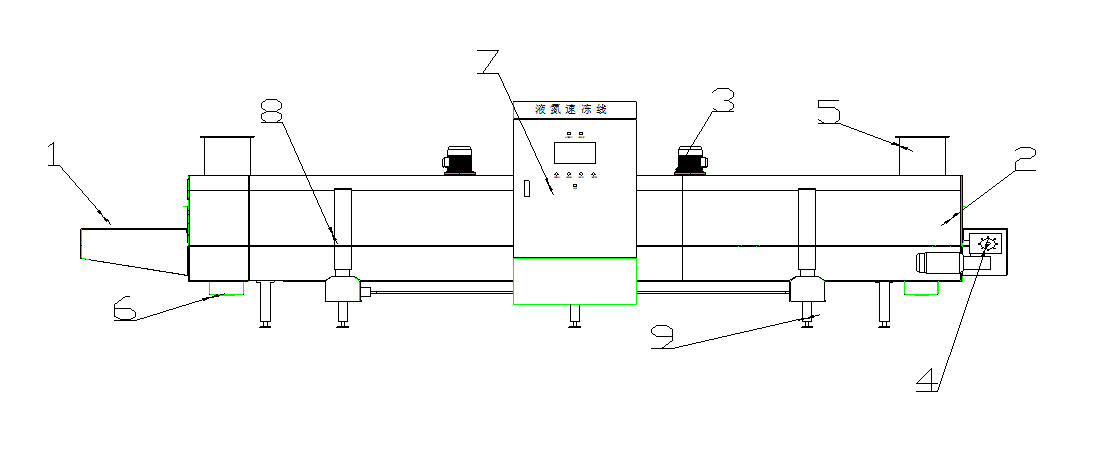

1,Inlet port 2,outlet port 3,circulating fan 4,wirebelt transport system

5,exhaust emission outlet 6,cleaning drainage 7,Electrical control cabinet

8,Elevator 9,Adjustable base

Our Advantages:

1. More than 10 years of professional recognition for ultra-low temperature deep cooling ,own independent intellectual property rights with more than 10 patented technologies.

2. The ability of compound innovation and multi-technology integration makes DJL unique in freezing machine industry.

3. Personalized scheme provides you the best cost performance of product

4. Close cooperative relationships with many universities

5. Three minutes quick-freezing ,the temperature low to minimum -196℃

6. Reasonable &exclusive quick-freezing total solution maximize utilize/save customers cost.

7. Free experiment and verification supporting .

8. Better serving customers by setting up branches and offices in country's areas.
