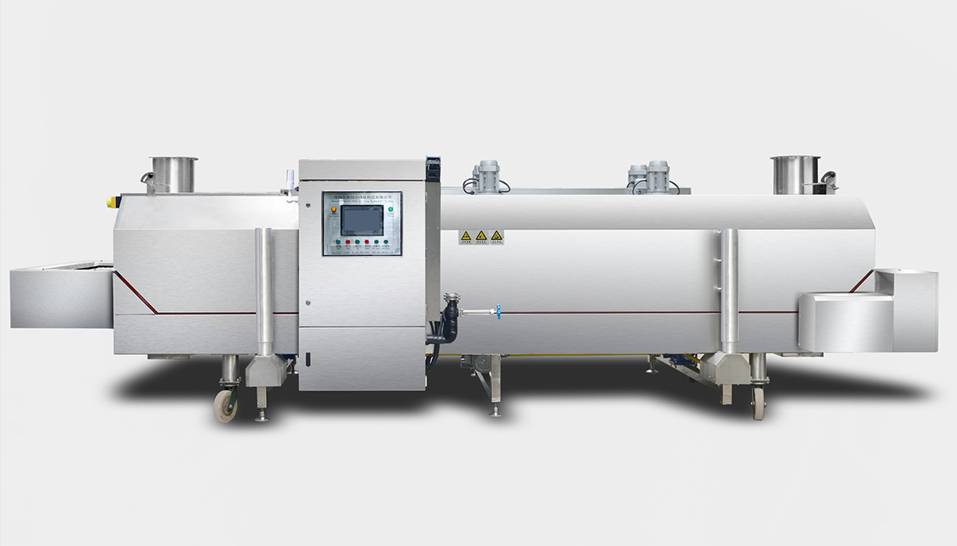

Liquid Nitrogen Fast Freezing Mesh Belt Continuous Cryogenic Line For Metal
product description
The belt has an independent circulating fan and liquid nitrogen control system, When mass production or large and long parts are produced, a whole machine can be restored. In this way, the consumption of liquid nitrogen can be significantly reduced and the production cost can be greatly reduced.
| Equipment material: | SUS304 stainless steel |
| Working temperature: | -150℃~room temperature |
| Temperature control precision: | ±2℃ |
| Temperature uniformity: | ±5℃ |
| Cooling rate: | ≥20℃/min |
| Heating rate: | ≥5℃/min |
| Distribution specification: | 380V/50HZ |
| Model | Inner capacity size
L * W * H (mm) | Boundary dimension
L * W * H (mm) | Volume
(L) | Refrigerating capacity (kg/h) | Delivery cycle
(Week) |
| SLX-544 | 500 * 400 * 400 | 1330 * 700 * 915 | 80 | 150 | 2 ~ 4 |
| SLX-755 | 700 * 500 * 500 | 1530 * 800 * 960 | 175 | 500 | 3 ~ 6 |
| SLX-966 | 900 * 600 * 600 | 1730 * 900 * 1060 | 324 | 650 | 3 ~ 6 |
| SLX-1077 | 1000 * 700 * 700 | 1930 * 1250 * 1210 | 490 | 1000 | 4 ~ 6 |
| SLX-1499 | 1400 * 900 * 900 | 2230 * 1200 * 1360 | 1134 | 1500 | 4 ~ 6 |
In addition to the above specifications, we can also customize various non-standard tank according to customers' requirements. Our products are continuously updated, if there is a product improvement, you can log in to our company's website or call for consultation at any time!
The characteristics of DJL liquid nitrogen cryogenic treatment machine
1. With extreme low temperature, the lowest temperature is -196℃, which can greatly meet the requirements of cold assembly process.
2. Adopting the latest intelligent temperature control system, it can set the required temperature parameters, cooling, freezing and holding time according to the process requirements, and it has the function of process recording and remote monitoring.
3. The machine adopts advanced liquid nitrogen dispersing technology and unique cold air circulation system to make full use of liquid nitrogen cooling energy, so that the workpiece can be cooled evenly, stably and quickly.
DJL liquid nitrogen cryogenic treatment equipment has been widely used in the heat treatment industry, electronic industry; It is often used in cryogenic treatment, cryogenic separation for molds, cutters, measuring tools, scissors, saw blades, oil pump and nozzle, miniature motor shaft, golf ball head, mobile phone accessories, computer touch screen, automobile bearings, rollers, cryogenic valves and other products and low-temperature assembly process of metal parts.
Why choose the liquid nitrogen quick-freezing equipment?
1.Liquid nitrogen temperature reached to -196 ℃, after it is in contact with the food, gasification can take heat away faster; Liquid nitrogen temperature and high heat exchange rate has realized the real quick freezing, such quick freezing makes the ice crystals are smallest, and helps to keep food texture, it also prevents moisture loss, almost no loss; Keep the original color,original taste and original quality of the food.
2. The initial fixed assets of liquid nitrogen quick-freezing equipment have lower investment and less space; Adapt to the change of production capacity and different types of food conciseness, labor and maintenance cost is less.
3. The liquid nitrogen quick-freezing equipment is relatively simple, the main parts will not be aged for ten years, and the latter maintenance is only replacing the solenoid valve and the wool felt and other small accessories, the cost is extremely low;And liquid nitrogen is inert, colorless, tasteless, non-corrosive, non-flammable, and extremely low temperature, so the liquid nitrogen refrigeration equipment safety performance is higher.
