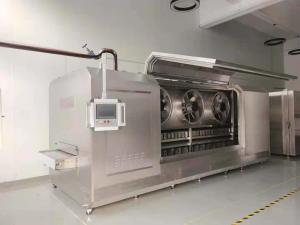

Individual Quick Freezing Blast Tunnel Freezer 400kgs/Hour 800kgs/Hour 14 Kw

Brand Name : DJL

Model Number : DJL-IQF-1206F

Certification : ISO9001

Place of Origin : Guangdong, China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T

Supply Ability : 100 Set/Sets per Year

Delivery Time : 30-45 working days

Packaging Details : sea shippment package

Machinery Report : Provided

Power : 14 kw

Cooling Capacity : 400kgs/hour

Cooling rate : Greater than or equal to 20℃/min

Heating rate : Greater than or equal to 5℃/min

Application : seafood, fruits, high value-added food

Contact Now

DJL Compressor Liquid Nitrogen Dual Use Type Blast Tunnel Freezer

Product Description

According to the production requirements can choose single, double net belt combination.

The belt shall be tightened and adjusted to ensure the smooth and long running of the food conveyor belt.

The storage body is made of rigid polyurethane foam with good insulation performance. The inner and outer cover and the inner and outer support of the storage body are made of stainless steel, which is easy to clean and meets the requirements of HACCP for food hygiene.

Regular Specifications

Equipment material:	the internal and external parts of equipment body are made of SUS304 stainless steel, which is durable in use without any corrosion.
Working temperature:	-35℃~room temperature
Temperature control precision:	±2℃
Temperature uniformity:	±5℃
Outline dimension:	62.22.2 meters
Frozen capacity	500kg/h
Food transportation:	The SUS304 special food conveyor belt is equipped with variable frequency and variable speed motor, the transportation speed can be adjusted flexibly as per different products; Furthermore, the equipment is equipped with belt elastic automatic regulating device, to ensure the stable and long-term operation of food transportation belt.
Equipment maintenance:	The equipment side is equipped with maintenance & cleaning gate to facilitate the cleaning and maintenance of conveyor. The bottom of engine body is equipped with drainage outlet to drain water from the equipment. The whole equipment is long life, low consumable design, the easily-damaged parts can be replaced easily and rapidly with excellent maintainability.

WHY CHOOSE BLAST TUNNEL FREEZER

1. High pressure fan with special evaporator, fully balanced high pressure and high speed flow field layout, full coverage mesh belt area

2. Special patented nozzle up and down bidirectional convection injection to ensure that the food surface is sufficiently uniform and strong convection cooling and quick freezing

3. Product weight loss is 60% less than conventional quick freezing device

4. Quick freezing efficiency is 50% higher than conventional quick freezing technology

5. The floor space is 30% less than that of traditional quick-freezing technology

6. Energy consumption is comparable to conventional quick freezing technology

Our Advantages

1. More than 10 years of professional recognition for ultra-low temperature deep cooling ,own independent intellectual property rights with more than 10 patented technologies.

2. The ability of compound innovation and multi-technology integration makes DJL unique in freezing machine industry.

3. Personalized scheme provides you the best cost performance of product

4. Close cooperative relationships with many universities

5. Three minutes quick-freezing ,the temperature low to minimum -196℃

6. Reasonable &exclusive quick-freezing total solution maximize utilize/save customers cost.

7. Free experiment and verification supporting .

8. Better serving customers by setting up branches and offices in country's areas.

FAQ

1. What are your main products? In which areas?

Our products are of many types and specifications, such as the cabinet type, box type and tunnel type, etc. These series products have been widely used in many domestic and foreign areas, such as the food processing, mechanical engineering, genetic engineering, precision electronic, medical research, plant conservation, aerospace and rear livestock, etc.

2. What certificate do you have?

Passed the ISO9001 Management System Certification in 2019.

3. How to send the equipment to my country?

By sea, using 20'GP, 40'GP or 45'GP containers, depends on size of the equipment.

4. How much liquid nitrogen will be consumed for freezing foods?

Generally 1:1, that is 1 ton nitrogen for 1 ton food The comsumption rate is 1:1 to 1:1.5, actual consumption depends on the dimension and water content.

5. What is your warranty policy?

One year warranty, life-time maintenance.Components and parts are provided for free within warranty date for replacement.
