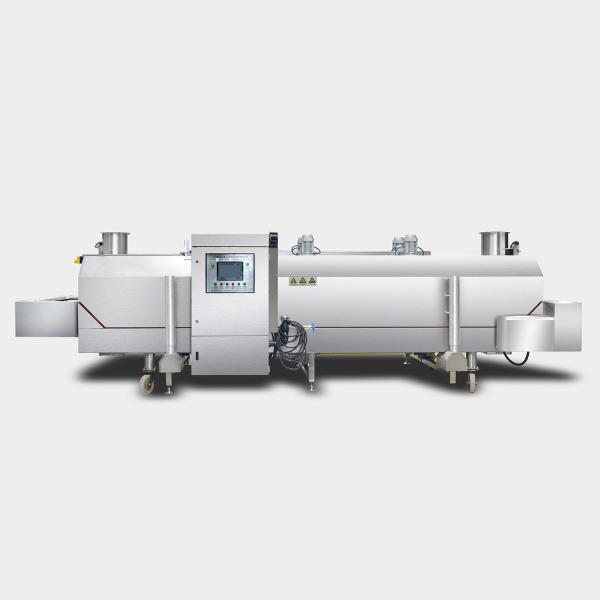

1200KG/H Liquid Nitrogen Tunnel Freezer

Place of Origin : Guangdong, China

Brand Name : DJL

Certification : ISO9001,CE

Packaging Details : sea shippment package

Supply Ability : 1 Sets per Month

Price : negotiable

Model Number : DJL-QFL-1212D

MOQ : 1 set

Payment Terms : T/T

Delivery Time : 45 work days

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Type : Tunnel Freezer /Line

Voltage : 380V/50Hz or 220v/50hz

Power : 18kw

Dimension(L*W*H) : 12000*1200mm

Contact Now

Automatic liquid nitrogen air cooling tunnel iqf instant freezer for Food cold processing

product description

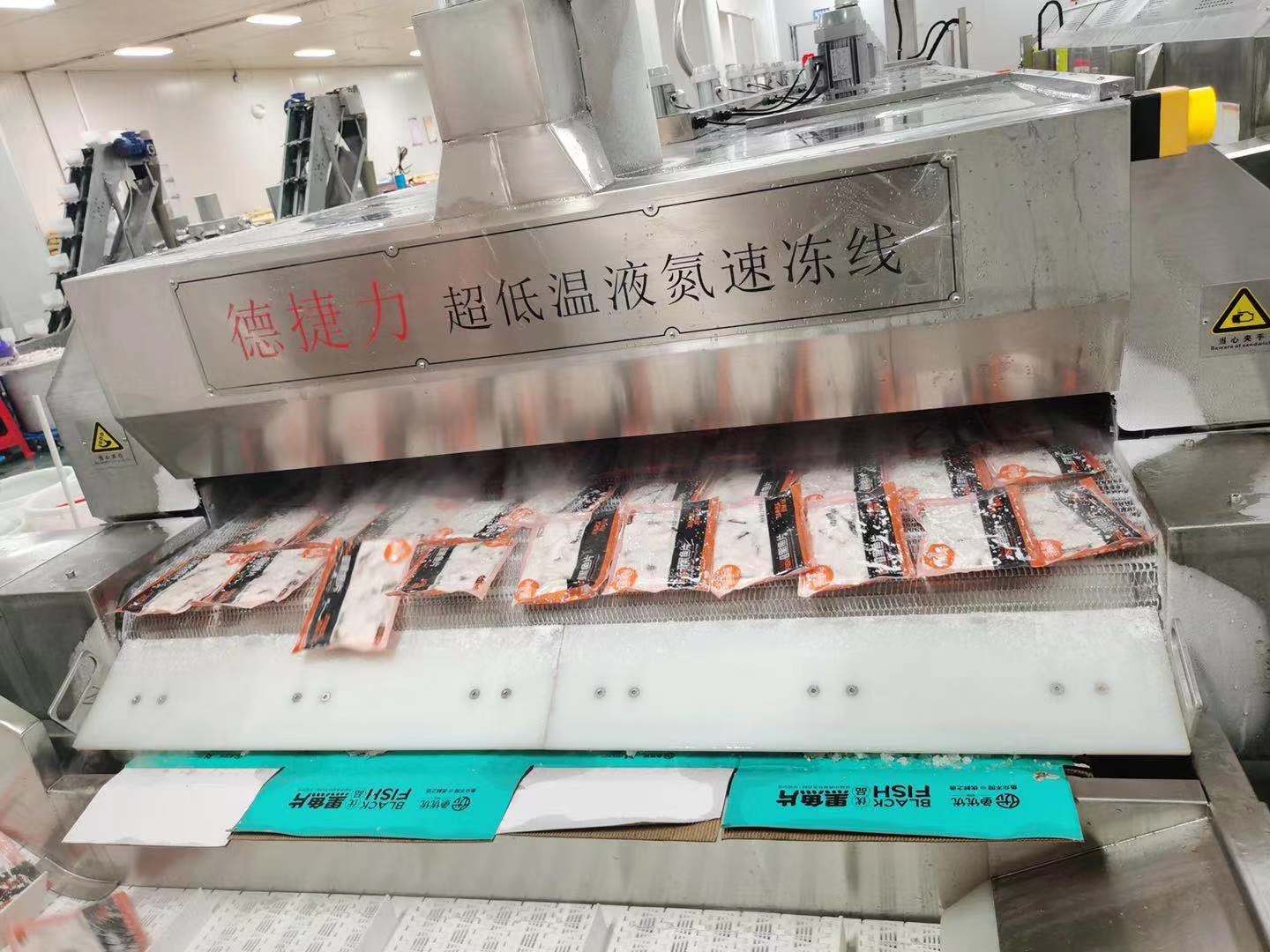

The equipment is a mesh belt tunnel continuous production line, which is safe and durable, easy to operate, easy to install and maintain. The equipment is mainly composed of body, transmission system, refrigeration system and control system. The side of the equipment is equipped with maintenance and cleaning gates to clean and maintain the conveyor belt. It can also be designed as a vertical lifting and opening type, which is easier to maintain. There is a drainage outlet at the bottom of the machine body to drain the accumulated water in the equipment. The equipment has a long service life and low consumables design. The replacement of vulnerable parts is simple and rapid, and the maintainability is excellent.

Equipment material:	SUS304 stainless steel
Working temperature:	-150℃~room temperature
Temperature control precision:	±2℃
Temperature uniformity:	±5℃
Cooling rate:	≥20℃/min
Heating rate:	≥5℃/min
Distribution specification:	380V/50HZ

Specification

Model	Tunnel length (mm)	Wire belt width (mm)	Tunnel height (mm)	Power (KW)	freezing capacity (kg/h)
DJL-QFL-1206	6000	1200	1750	10	400-600
DJL-QFL-1209	9000	1200	1750	12	800-1000
DJL-QFL-1212	12000	1200	1750	18	1000-1200
DJL-QFL-1609	9000	1600	1750	15	1000-1200
DJL-QFL-1612	12000	1600	1750	28	1800-2100
DJL-QFL-1618	18000	1600	1750	32	2000-2500
DJL-QFL-1815	15000	1800	1750	28	2000-2500
DJL-QFL-1818	18000	1800	1750	32	2200-2800
DJL-QFL-1824	24000	1800	1750	46	2800-3500

FAQ:

1. What are your main products? In which areas?

Our products are of many types and specifications, such as the cabinet type, box type and tunnel type, etc. These series products have been widely used in many domestic and foreign areas, such as the food processing, mechanical engineering, genetic engineering, precision electronic, medical research, plant conservation, aerospace and rear livestock, etc.

2. What certificate do you have?

Passed the ISO9001 Management System Certification in 2019.

3. How to send the equipment to my country?

By sea, using 20'GP, 40'GP or 45'GP containers, depends on size of the equipment.

4. How much liquid nitrogen will be consumed for freezing foods?

Generally 1:1, that is 1 ton nitrogen for 1 ton food The comsumption rate is 1:1 to 1:1.5, actual consumption depends on the dimension and water content.

5. What is your warranty policy?

One year warranty, life-time maintenance.Components and parts are provided for free within warranty date for replacement.
